ST triangular plugs

Back to Triangular plugs

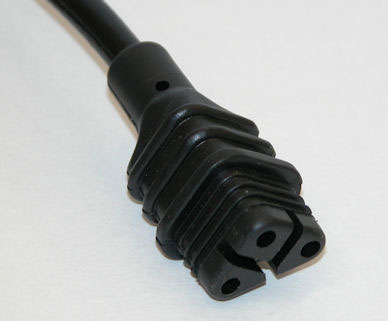

Oroflam ST triangular plugs are equipped with 3 x 0.75 H03 cable.

The electric connection is done by junction with Ø 2,4 mm bush. The cable length and the type of electric terminals are in conformity to the customer demand.


Technical Characteristics Table
Contacts distance12 mm
Maximum voltage250 V
Maximum admittable continuous electric power1 kW
Housing materialPVC
Electric cable type3 x 0.75 H03
Ambient working temperature range (moving installation)+5 °C ÷ +55 °C
Ambient working temperature range (fixed installation)-20 °C ÷ +55 °C
Protection classIP 65

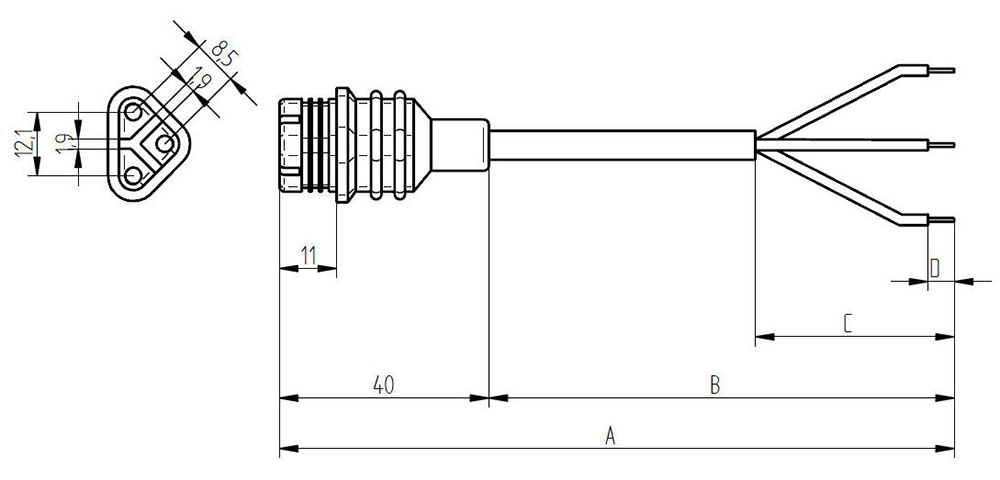

We recommend contacting us using the button on this page or by writing to tecnico@oroflam.it to request a quotation for our plugs. Please use the drawings provided here to specify the length and stripping of the power cable, and indicate any electrical terminals to be crimped onto it.
