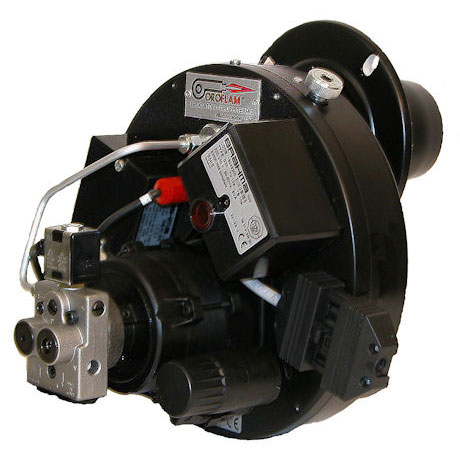

2001/5 - 2001/5P - 2001/5R light-oil burner

Back to 2001 series

Light oil burner 2001/5 is available in the standard model (2001/5), with pre-heater in the combustion head (2001/5P) or with reduced start (2001/5R);
is also available by special request the model with both pre-heater and reduced start named 2001/5RP.

It is provided with two air regulations: one before the fan and the other after the fan for setting-up both the capacity and the pressure of the air that goes to the draught tube.

The burner has no cover and uses a Brahma control box.

The electric connection to the burner is very easy because is done using a 6-poles connecting plug.


Technical characteristics table
Capacity1.5 – 5 kg/h
Heating power15,000 – 50,000 kcal/h
17.3 – 57.8 kW
Power supply230 V 50 Hz
Motor power75 W
Power consumption
Modelmaximumworking
2001/5160 W105 W
2001/5P270 W215 W
2001/5R170 W105 W

Standard nozzles table
Nozzle (GPH)Capacity (kg/h)
0.501.74
0.602.23
0.652.40
0.752.78
0.853.31
1.003.72
1.104.10
1.204.45
1.254.64
1.355.02
