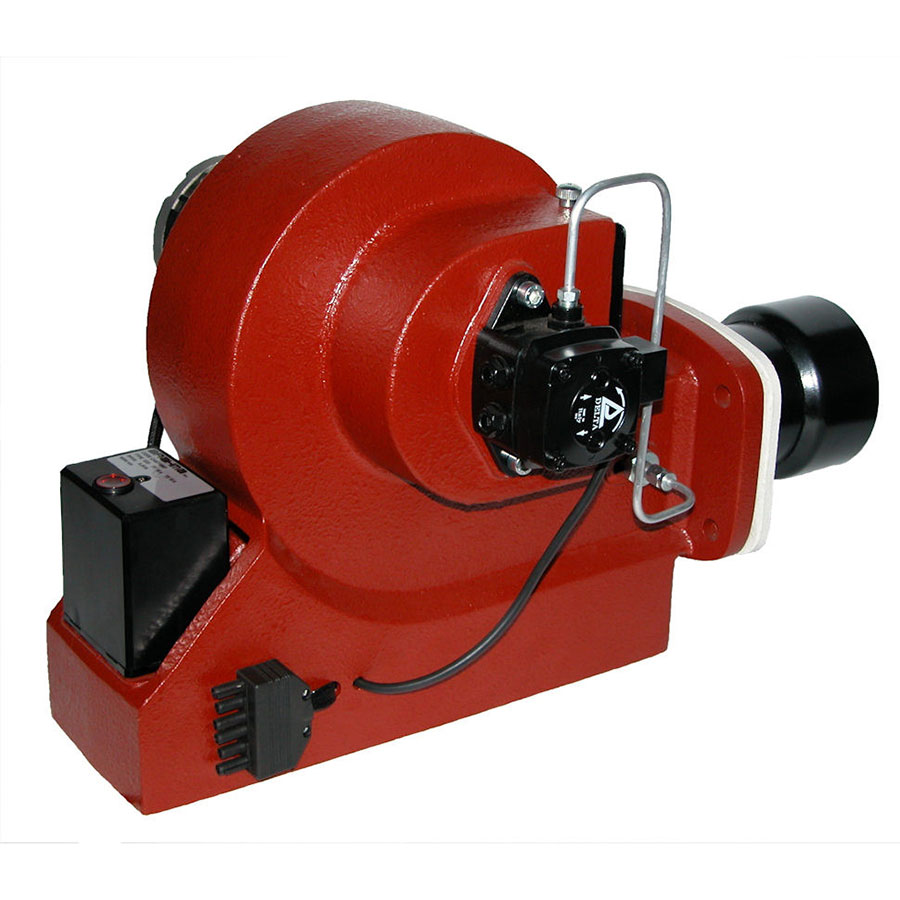

B3/25 DC light-oil burner

Back to 24V direct current series

Light-oil burner B3/25 DC is born as mobile systems application like waste boxes cleaning trucks, asphalting and sterilizing machines and others.

The 24V direct current electric supply allows to connect it directly to the truck battery of the mobile system.

The burner body is aluminium made and the air regulation is done using a vertical door on its right side.

Technical characteristics table
Capacity 15 – 25 kg/h
Heating power 150,000 – 250,000 kcal/h
173.6 – 289.0 kW
Power supply 24 V direct current
Motor power 180 W
Assorbimento elettrico
maximum265 W
working200 W
Standard nozzles table
Nozzle (GPH) Capacity (kg/h)
4.0016.24
4.5018.20
5.0020.30
5.5022.25
6.0024.35
6.5026.35
