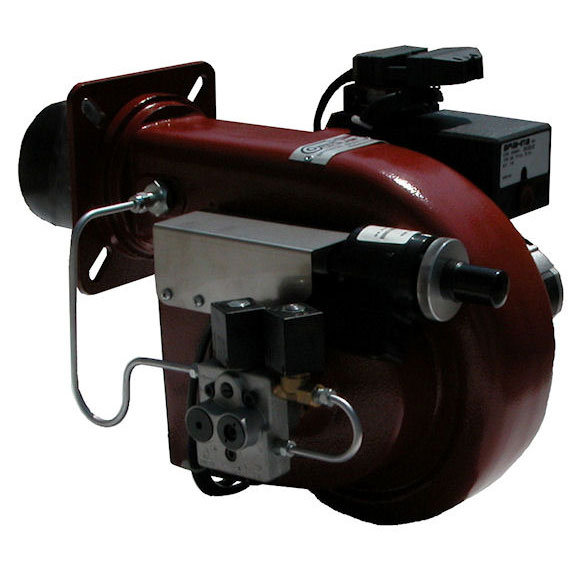

Jolly Press DC two stages light-oil burner

Back to 24V direct current series

Light-oil burner Jolly Press DC two stages is born as a variation of the Jolly Press DC model.

This burner can work with two different flames using a modulation thermostat.

The light-oil capacity variation is caused by a pressure jump to the nozzle while the air capacity variation is done using a regulation electric jack.

This burner is suitable in mobile systems application like waste boxes cleaning trucks, asphalting and sterilizing machines and others where high starting overpressures in the combustion chamber do not allow the flame ignition of a normal single stage burner.

The 24V direct current electric supply allows to connect it directly to the truck battery of the mobile system. Because of its wide capacity range, the easy maintenance and the wide overpressure in combustion chamber range that can support, it can be considered between the most versatile Oroflam burners.

The burner body is aluminium made and the air regulation is done using a vertical door on its left side.

With the 24 V DC product series Oroflam completes the special use burner series

Technical characteristics table
Capacity 4 – 15 kg/h
Heating power 40,000 – 150,000 kcal/h
46.2 – 173.6 kW
Power supply 24 V direct current
Motor power 110 W
Power consumption
maximum235 W
working140 W
Standard nozzles table
Nozzle (GPH) Capacity (kg/h)
1.003.72
1.104.10
1.204.45
1.254.64
1.355.02
1.505.58
1.656.13
1.756.50
2.007.43
2.258.38
2.509.28
3.0011.17
3.5013.05
4.0014.88
