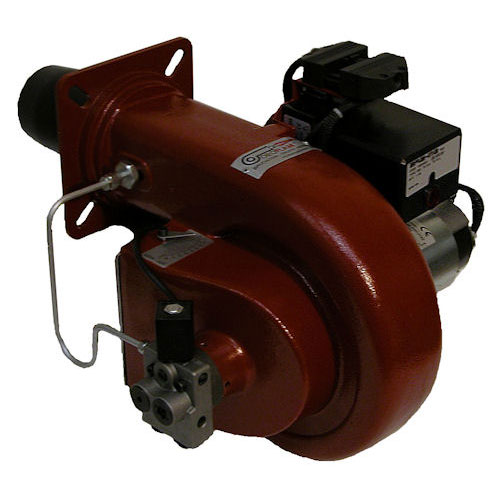

Jolly Press DC6 light-oil burner

Back to 24V direct current series

Light-oil burner Jolly Press DC6 is born as a reduced capacity variation of the Jolly Press DC model.

The capacity lowering in a semi-high pressure burner like this make it suitable in mobile systems application like waste boxes cleaning trucks, asphalting and sterilizing machines and others where the combustion chamber is rather small.

The 24V direct current electric supply allows to connect it directly to the truck battery of the mobile system.

Because of its wide capacity range, the easy maintenance and the wide overpressure in combustion chamber range that can support, it can be considered a very versatile product.

The burner body is aluminium made and the air regulation is done using a vertical door on its left side.

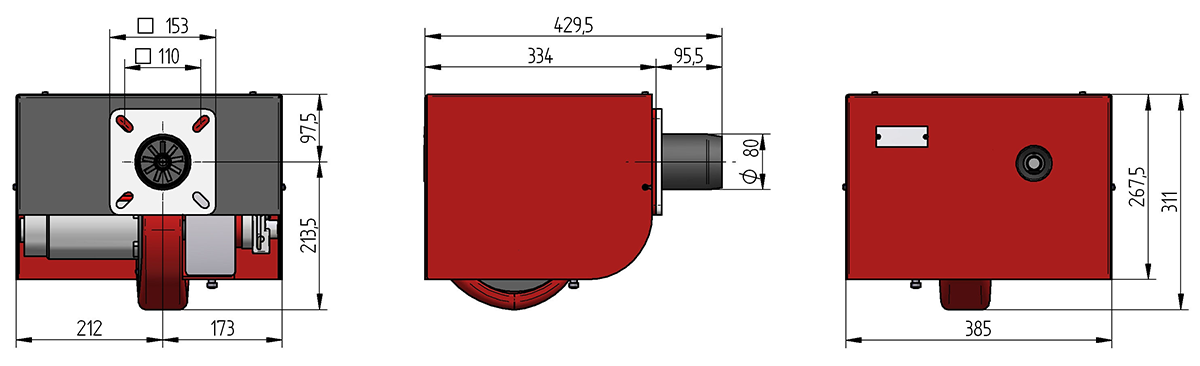

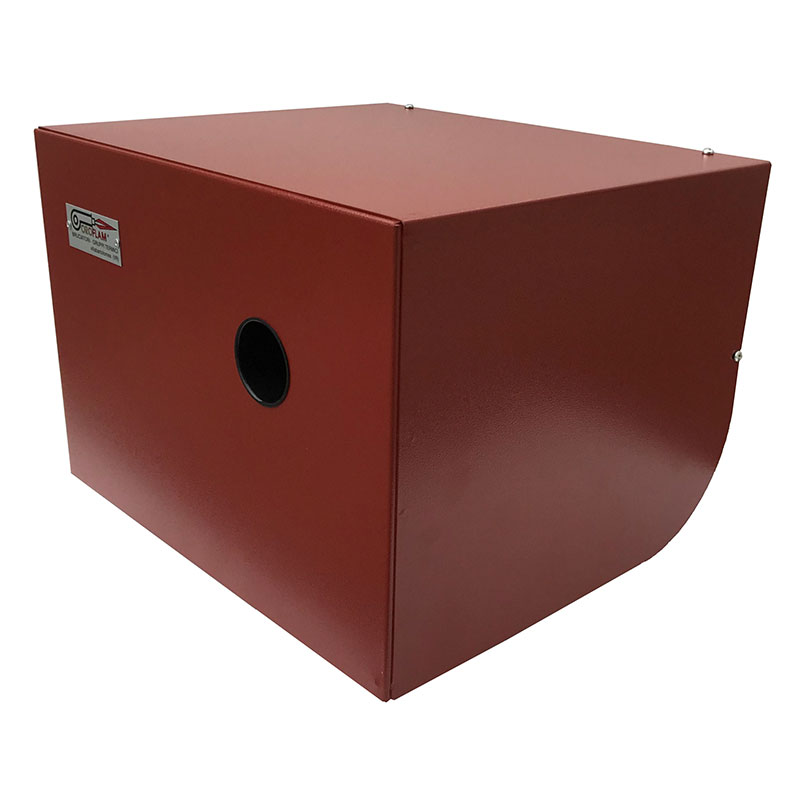

The burner, upon request, can be supplied with an optional sheet metal cover.

Technical characteristics table
Capacity 2.3 – 6 kg/h
Heating power 22,700 – 60,000 kcal/h
26.5 – 69.8 kW
Power supply 24 V direct current
Motor power 110 W
Power consumption
maximum195 W
working130 W
Standard nozzles table
Nozzle (GPH) Capacity (kg/h)
0.602.23
0.652.40
0.752.78
0.853.31
1.003.72
1.104.10
1.204.45
1.254.64
1.355.02
1.505.58
1.656.13
