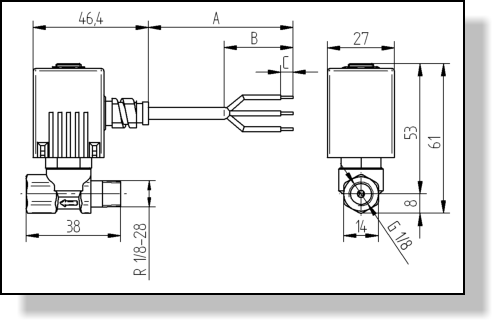

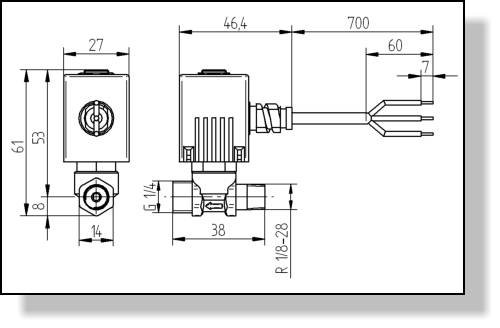

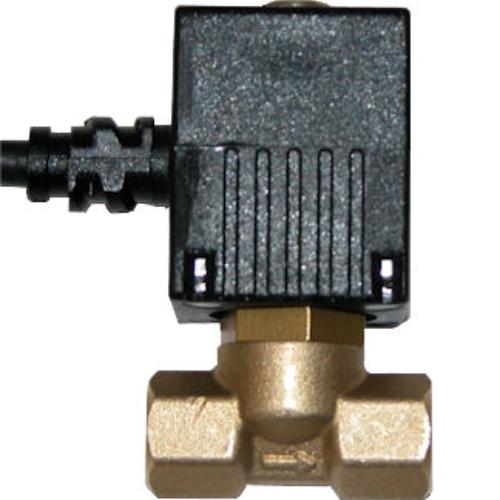

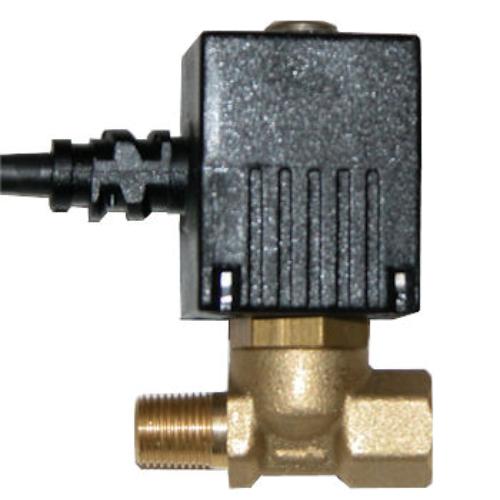

© Oroflam s.r.l. 2011 Oroflam VA model solenoid valves are supplied usually with an electric cable 700  mm long, 60 mm unsheathed and caiman electric terminals. We suggest you to  contact our firm at the e-mail address: tecnico@oroflam.it to have an offer for our  solenoid valves equipped with a cabled solenoid that follows your specifications  using the table here below to define the solenoid characteristics and the valve  body hydraulic connections and using the drawings to specify us the cable length,  unsheathing dimension and the cable type, remembering to specify also the  electric terminals you need. VA model solenoid valve with 1/8’ M conical - 1/4’ M connections and alternating current cabled solenoid overall dimensions with standard cable overall dimensions VA model solenoid valve with 1/8’ M conical - 1/8’ F connections and alternating current cabled solenoid overall dimensions VA model solenoid valve with 1/8’ F - 1/8’ F connections and direct current cabled solenoid overall dimensions Technical Characteristics Table Maximum working pressure 25 bar Passage hole diameter Power consumption Die-casted brass Valve body material 1.8 mm Viton Input side Seal material Available standard connections Available power supply 1/8’ F 1/8’ F 1/4’ M 380 V  50/60 Hz 110 V  60 Hz 220/240 V  50/60 Hz 100 V  60 Hz Fluids temperature Galvanized iron Core material Nylon Solenoid coating material max 60 °C 9 W 24 V  50 Hz Output side 1/8’ F 1/8’ M conical 1/8’ M conical 24 V DC (direct current) 12 V DC (direct current) Privacy & Cookies
